Power Seat Sub Switch (Passengers Side)

Remove power seat sub switch (passengers side), see FRONT SEAT COMPONENTS .
Check connection between terminals at each switch position.
If check result is not as specified, replace switch.

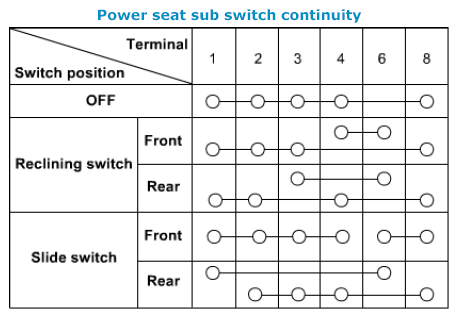

Fig 1: Power Seat Sub Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Power Seat Sub Switch Connector Terminals
Courtesy of SUZUKI OF AMERICA CORP.
