Rear Window Regulator Assembly Removal and Installation: Removal

Disconnect negative (-) cable at battery.
Remove rear door glass, see REAR DOOR GLASS REMOVAL AND INSTALLATION .
Disconnect power window motor connector (1).
Remove window regulator bolts (2) and remove rear window regulator assembly (3).

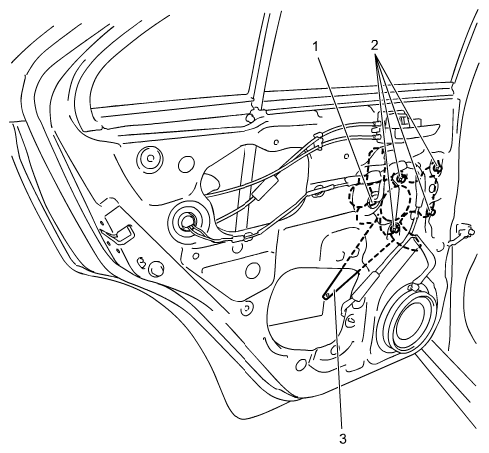

Fig 1: Identifying Power Window Motor Connector, Window Regulator Bolts And Rear Window Regulator Assembly
Courtesy of SUZUKI OF AMERICA CORP.
