Rear Door Quarter Glass Removal and Installation: Removal

  1. Remove rear door sash referring to REAR DOOR GLASS REMOVAL AND INSTALLATION .
  2. Pull to remove rear door quarter glass (1) and rear door quarter glass weather-strip (2) in arrow direction.

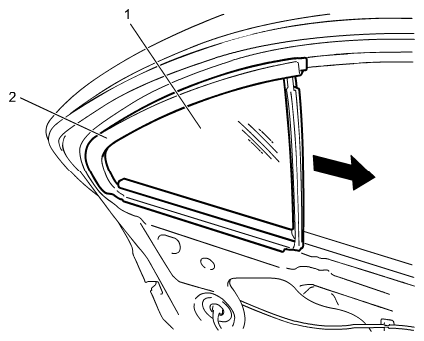

    Fig 1: Removing Rear Door Quarter Glass And Rear Door Quarter Glass Weather-Strip
    G06529157Courtesy of SUZUKI OF AMERICA CORP.
