Rear Door Glass Removal and Installation: Removal

Lower rear door glass fully.
Disconnect negative (-) cable at battery.
Remove inside handle cap (1) and trim cap (2).
Remove screws (3), clips, and then remove door trim (4) by pulling it, and then disconnect connectors of door harness.

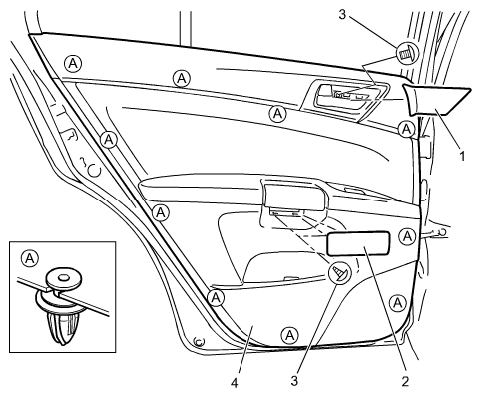

Fig 1: Identifying Door Trim, Inside Handle Cap And Trim Cap
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear outer weather-strip (1) by moving it in arrow directions in order ("1" to "2") as shown in figure.

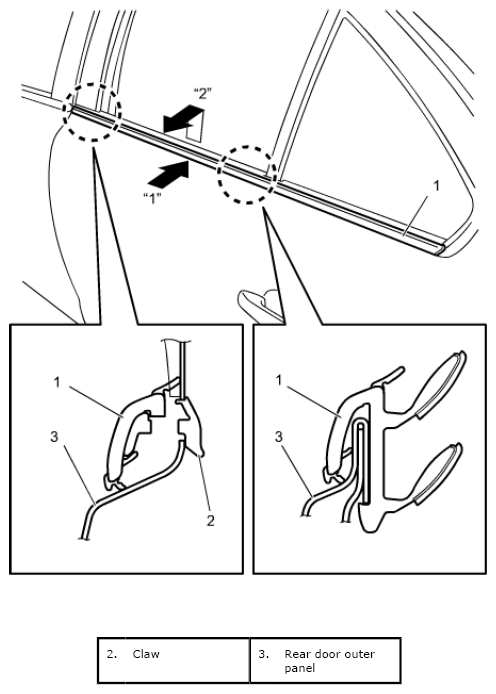

Fig 2: Removing Rear Outer Weather-Strip
Courtesy of SUZUKI OF AMERICA CORP.
Remove rear inner weather-strip (1) by pulling it in arrow direction.

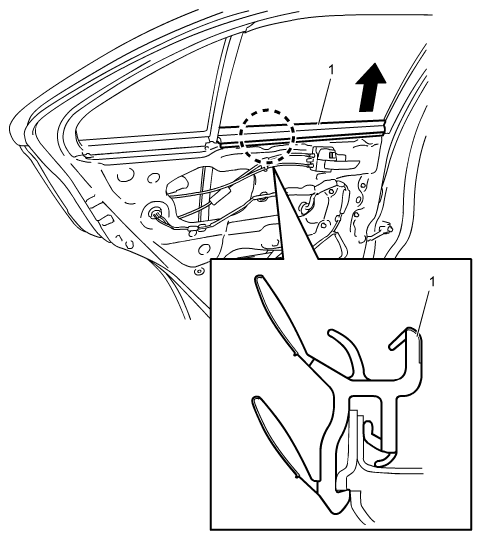

Fig 3: Removing Rear Inner Weather-Strip
Courtesy of SUZUKI OF AMERICA CORP.
Remove door sealing cover (1).

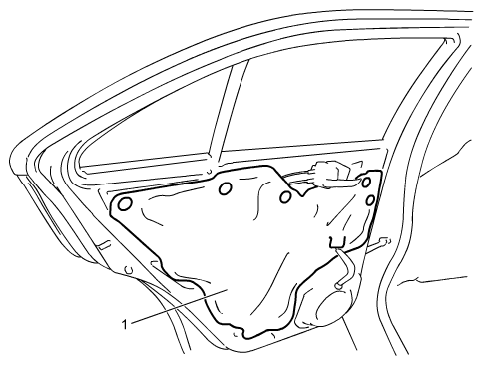

Fig 4: Removing Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.
Turn over glass run (1) and remove rear door sash screw (2).
Remove rear door sash bolt (3) and remove rear door sash (4).

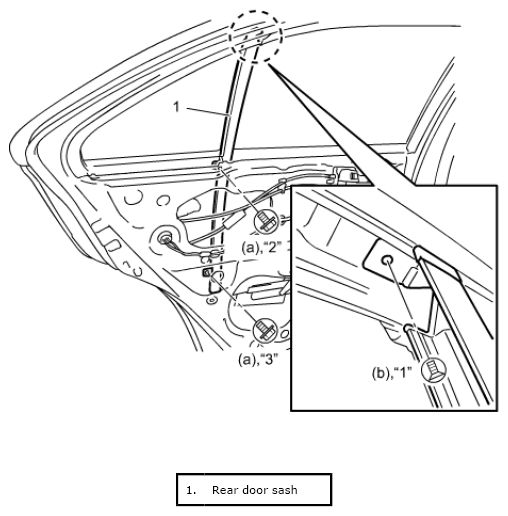

Fig 5: Identifying Rear Door Sash Bolt, Rear Door Sash, Glass Run And Rear Door Sash Screw
Courtesy of SUZUKI OF AMERICA CORP.
Turn rear door glass (1) in direction of arrow "1" to remove glass bottom channel (3) from rear window regulator assembly (2) and then remove rear door glass (1) in direction of arrow "2".

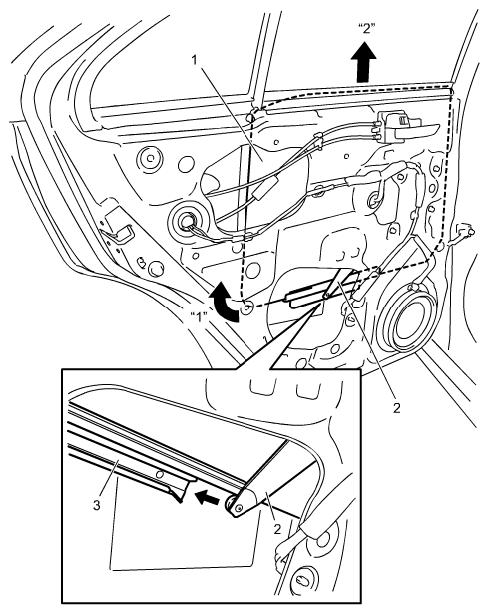

Fig 6: Removing Glass Bottom Channel From Rear Window Regulator Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove glass bottom channel from rear door glass if necessary.
