Power Door Mirror Removal and Installation: Removal

Reference: POWER DOOR MIRROR ON-VEHICLE INSPECTION

1. Remove front door trim, see FRONT DOOR GLASS REMOVAL AND INSTALLATION .
2. Disconnect power door mirror connector (1).
3. Remove door mirror nuts (2) and remove door mirror (3).

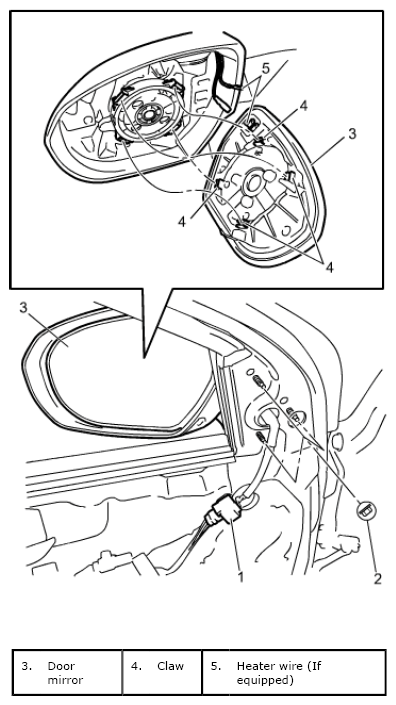

   Fig 1: Identifying Power Door Mirror Connector, Door Mirror Nuts And Door Mirror

   Courtesy of SUZUKI OF AMERICA CORP.
