Power Door Mirror Removal and Installation: Installation
Reverse removal procedure noting the following points.

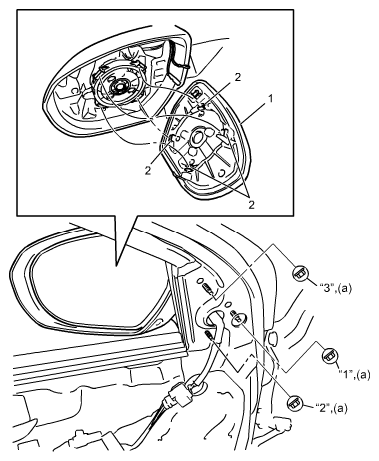

- Insert claws (2) securely when installing mirror (1).
- Check operation of door mirror after installation.
- Tighten door mirror nuts in order ("1" to "3") to specified torque.
Tightening torque
Door mirror nut (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
