Kizashi Base, Standard Trans
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Diagnostic Information and Procedures
>>
DTC B1189: Immobilizer Antenna Communication Error
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

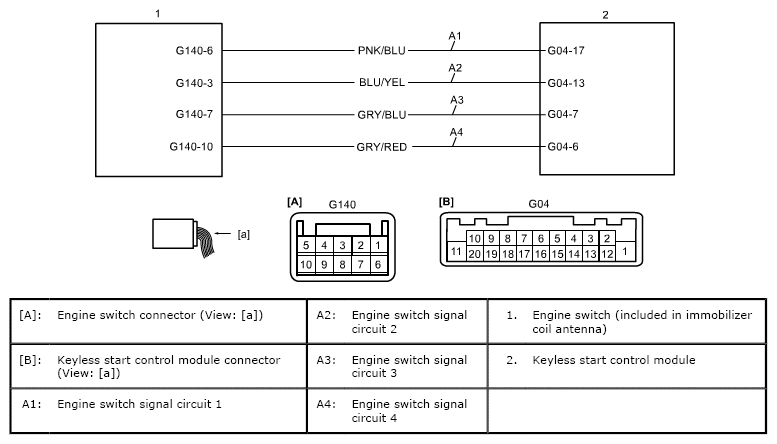

Fig 1: Immobilizer Antenna Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
