Fog Light Switch Inspection (If Equipped)

Reference: FOG LIGHT SWITCH REMOVAL AND INSTALLATION (IF EQUIPPED)

Check continuity between terminals at each switch position. If check result is not as specified, replace switch.

Fig 1: Identifying Fog Light Switch Connector Terminals

Courtesy of SUZUKI OF AMERICA CORP.

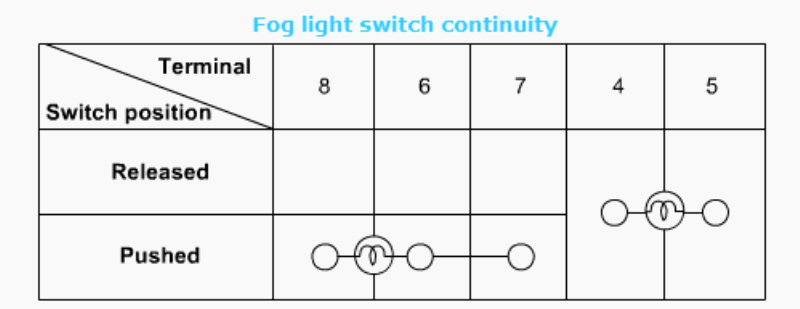

Fig 2: Fog Light Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.
