BCM Input/Output Diagram

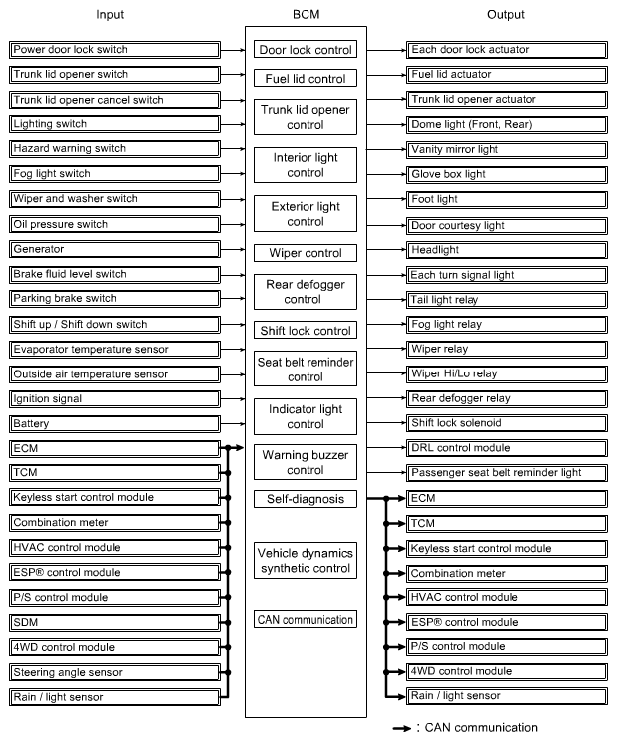

Fig 1: BCM Input / Output Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
