Transmission Range Sensor Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove air cleaner assembly, see AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
  3. Shift manual select lever (1) to "N" position.

    Insert special tool to aligning hole on manual select lever (1) and check that the position of aligning hole on transmission range sensor (2) as shown in figure.

  4. Remove clip of select cable and disconnect select cable from manual select lever, see SELECT CABLE COMPONENTS .

    Special Tool

    1. 09916-44310
  5. Disconnect transmission range sensor connector.

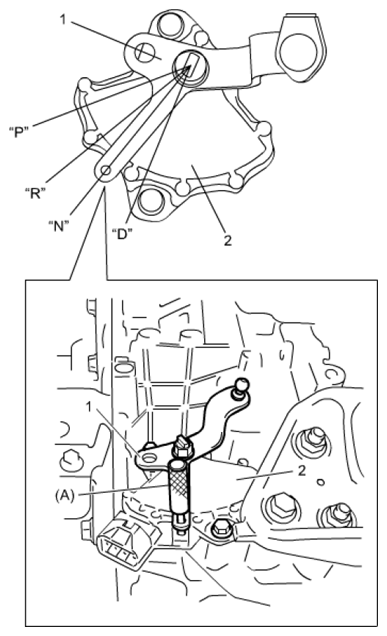

    Fig 1: Identifying Transmission Range Sensor
    G06527885Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove manual select lever nut (1) and manual select lever (2).
  7. Remove transmission range sensor bolts (3) and transmission range sensor (4).

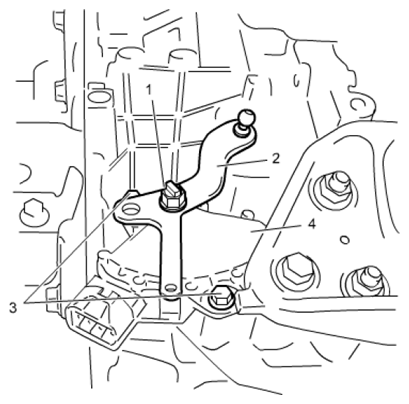

    Fig 2: Identifying Manual Select Lever Nut And Transmission Range Sensor Bolts
    G06527886Courtesy of SUZUKI OF AMERICA CORP.
