Shift Paddle Switch Removal and Installation: Removal

  1. Remove steering wheel, see STEERING WHEEL REMOVAL AND INSTALLATION .
  2. Remove screws (1) and release claws (2).
  3. Disconnect connectors and then remove shift paddle switches (3).

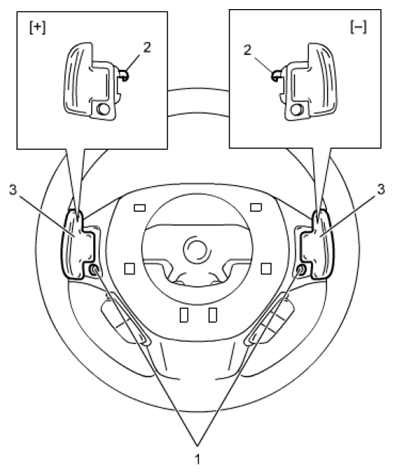

    Fig 1: Identifying Shift Paddle Switches, Claws And Screws
    G06527863Courtesy of SUZUKI OF AMERICA CORP.
