CVT Fluid Cooler and CVT Fluid Cooler Hoses Inspection

Check CVT fluid cooler and CVT fluid cooler hoses (1) for fluid leakage, cracks, damage and deterioration. Replace CVT fluid cooler, CVT fluid cooler hose and/or clamp if any faulty condition is found.

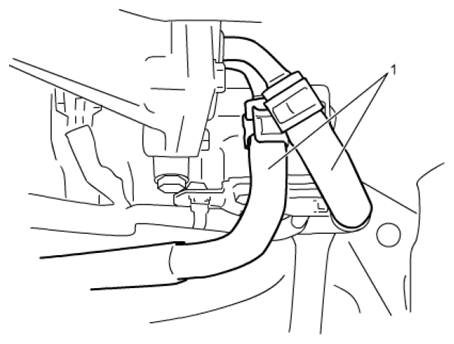

Fig 1: Identifying CVT Fluid Cooler Hoses

Courtesy of SUZUKI OF AMERICA CORP.
