CVT Fluid Cooler Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Disconnect CVT fluid cooler No. 1 hose (2) and No. 3 hose (1).
  3. Remove CVT fluid cooler bolts, and then remove CVT fluid cooler (3).
  4. Remove fluid cooler bracket (4), if necessary.

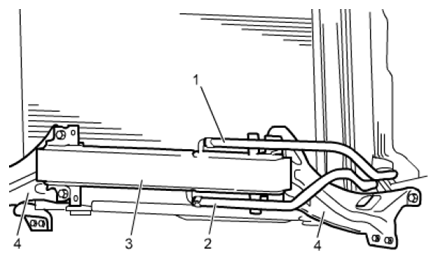

    Fig 1: Identifying Fluid Cooler Bracket, CVT Fluid Cooler No. 1 Hose And No. 3 Hose
    G06527906Courtesy of SUZUKI OF AMERICA CORP.
