CVT Fluid Cooler Hoses Replacement

Rubber hoses for CVT fluid cooler should be checked at specified interval. If replacing them, be sure to note the following points.

• Remove front bumper, if necessary. See FRONT BUMPER REMOVAL AND INSTALLATION .
• Replace clamps with new ones at the same time.
• Clamp new clamps securely.

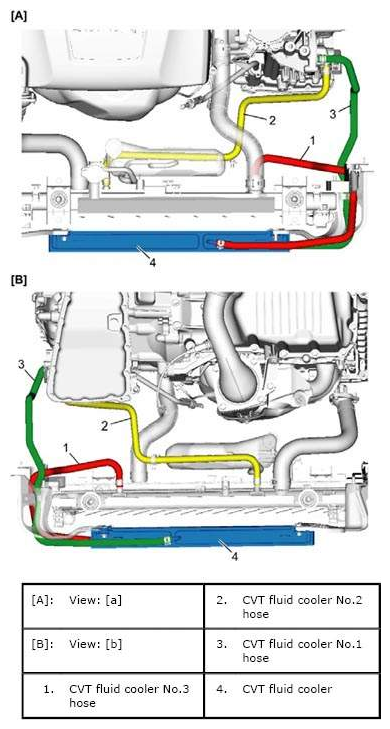

  Fig 1: Identifying CVT Fluid Cooler Hoses

  Courtesy of SUZUKI OF AMERICA CORP.

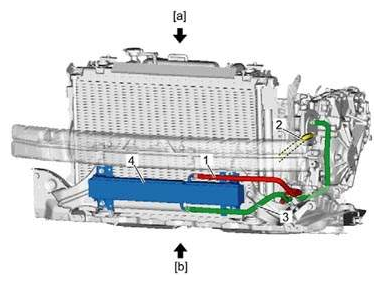

  Fig 2: Identifying CVT Fluid Cooler Hoses Location

  Courtesy of SUZUKI OF AMERICA CORP.
