CVT Fluid Cooler Components

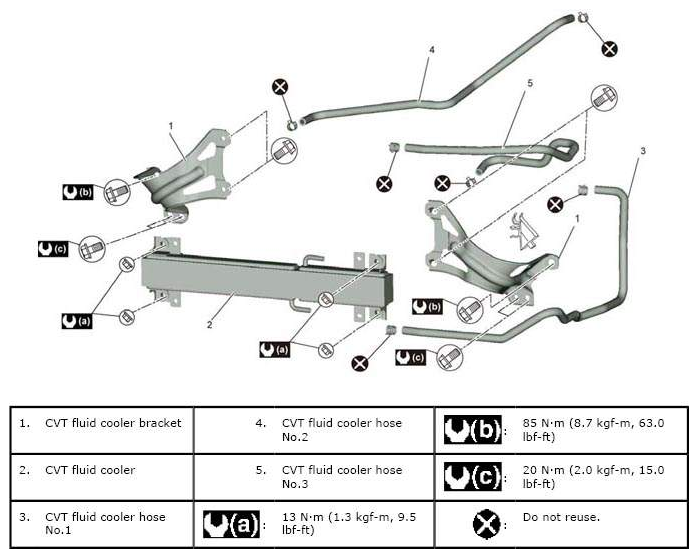

Fig 1: CVT Fluid Cooler Replacement Components With Torque Specifications
G06527902Courtesy of SUZUKI OF AMERICA CORP.
