Secondary Pressure Control Solenoid Valve Signal

Secondary pressure control solenoid valve signal (1):

TERMINAL REFERENCE

Channel	Probe	Terminal No.
1	+	E19-8
1	-	E20-9

Measurement condition

Engine: Running after warming up
Select lever position: "D" range
Accelerator pedal: Depressed fully

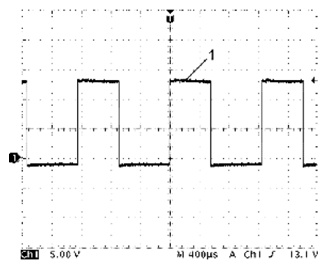

Fig 1: Secondary Pressure Control Solenoid Valve Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
Engine: Idle speed
Select lever position: "D" range
Accelerator pedal: Released

Fig 2: Secondary Pressure Control Solenoid Valve Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
