Oscilloscope Display

Shown below is typical waveform display provided by oscilloscope.

NOTE:
  • Display includes the following types of data:

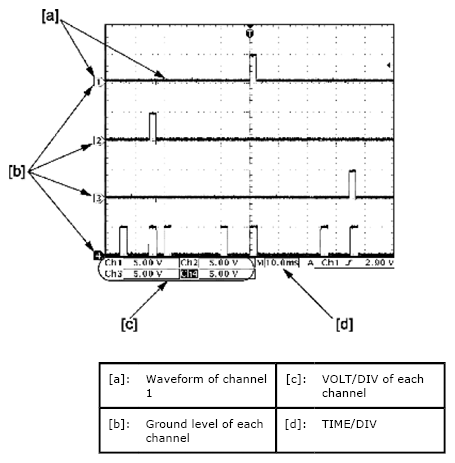

    Fig 1: Identifying Waveform Of Channel
    G06527845Courtesy of SUZUKI OF AMERICA CORP.
  • Waveforms may vary with measurement conditions and vehicle specifications.
