DTC P0842: Transmission Fluid Pressure Sensor / Switch "A" Circuit Low/DTC P0843: Transmission Fluid Pressure Sensor / Switch "A" Circuit High
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

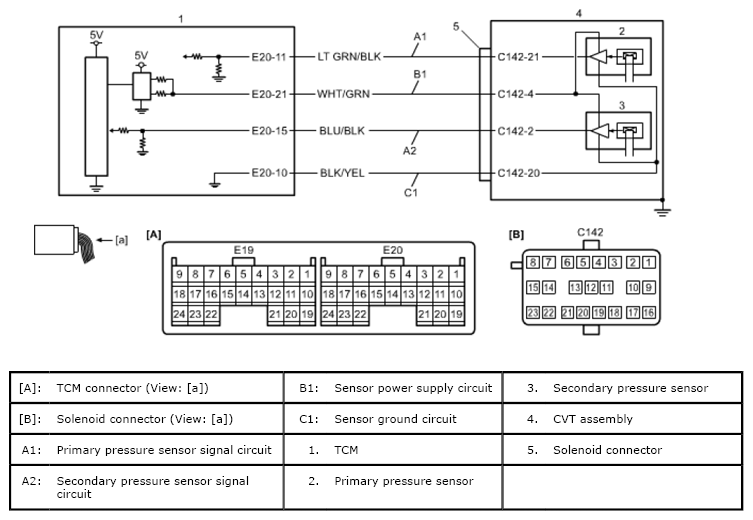

Fig 1: Transmission Fluid Pressure Sensor Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
