CVT Symptom Diagnosis

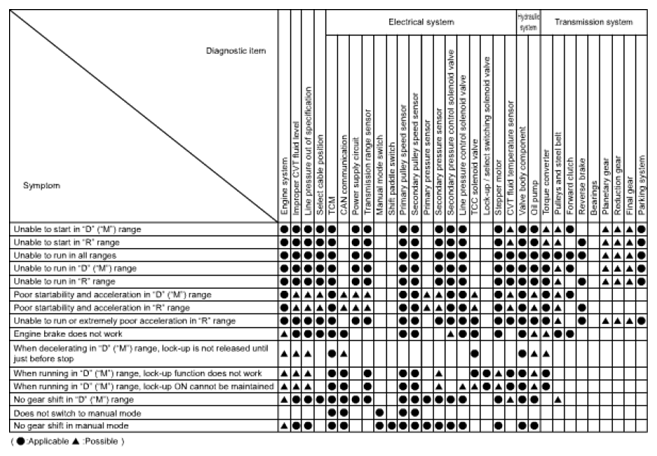

Fig 1: CVT Symptom Diagnosis Chart (1 Of 3)
G06527813Courtesy of SUZUKI OF AMERICA CORP.

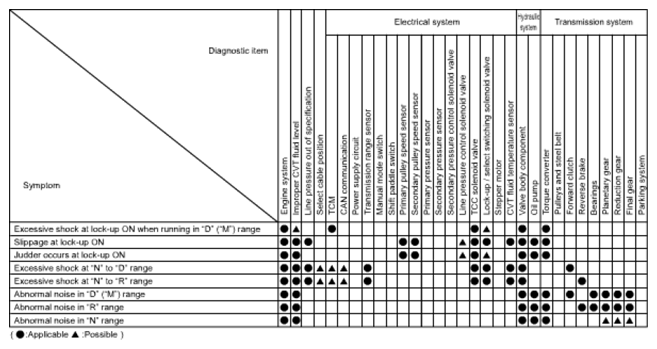

Fig 2: CVT Symptom Diagnosis Chart (2 Of 3)
G06527814Courtesy of SUZUKI OF AMERICA CORP.

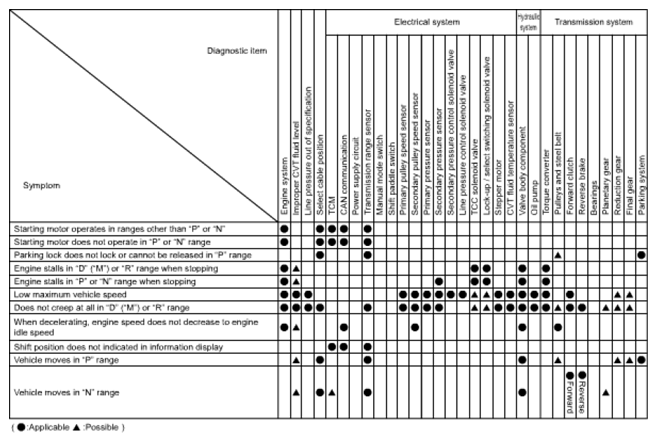

Fig 3: CVT Symptom Diagnosis Chart (3 Of 3)
G06527815Courtesy of SUZUKI OF AMERICA CORP.
