Using Recommended Tool ("VT55" made by ATEQ)

  1. Check each tire for crack, any other damage and air leakage.
  2. Adjust each tire pressure to 260 kPa.
  3. Drive vehicle at more than 35 km/h (22 mph) for 10 minutes.
  4. Connect SUZUKI scan tool to DLC.
  5. Select "Data List" under "keyless start control module" mode of SUZUKI scan tool.
  6. Check "ID code" indicated in "Data List" on SUZUKI scan tool.
  7. Using recommended tool ("VT55" made by ATEQ) (1), activate each tire pressure sensor. Refer to instruction of recommended tool for method of activating tire pressure sensor.

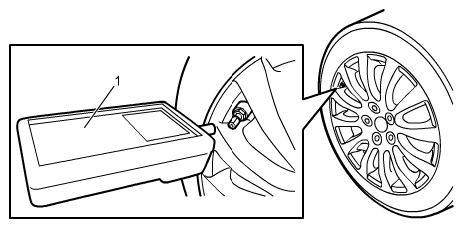

    Fig 1: Identifying Recommended Tool
    G06530198Courtesy of SUZUKI OF AMERICA CORP.
  8. Check ID code indicated on recommended tool.
  9. Compare ID code indicated in scan tool with code in recommended tool.
