Trailing Arm Removal and Installation: Removal

  1. Hoist vehicle and remove rear wheels, see WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
  2. Support lower arm with jack.
  3. Remove parking brake cable guide bolt (1) and parking brake cable guide (2).
  4. Remove trailing arm front bolts (3) and trailing arm rear bolts (4).
  5. Remove trailing arm (5).

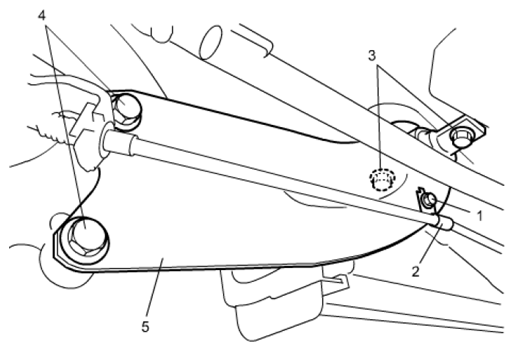

    Fig 1: Identifying Parking Brake Cable Guide Bolt, Trailing Arm And Parking Brake Cable Guide Bolts
    G06528364Courtesy of SUZUKI OF AMERICA CORP.
