Shock Absorber Disassembly and Reassembly: Disassembly

  1. Remove rear shock absorber support cap bolt (2) and remove rear shock absorber support (3).
  2. Remove rear shock absorber nut (1) while holding piston rod of rear shock absorber by the flat portion at its tip.

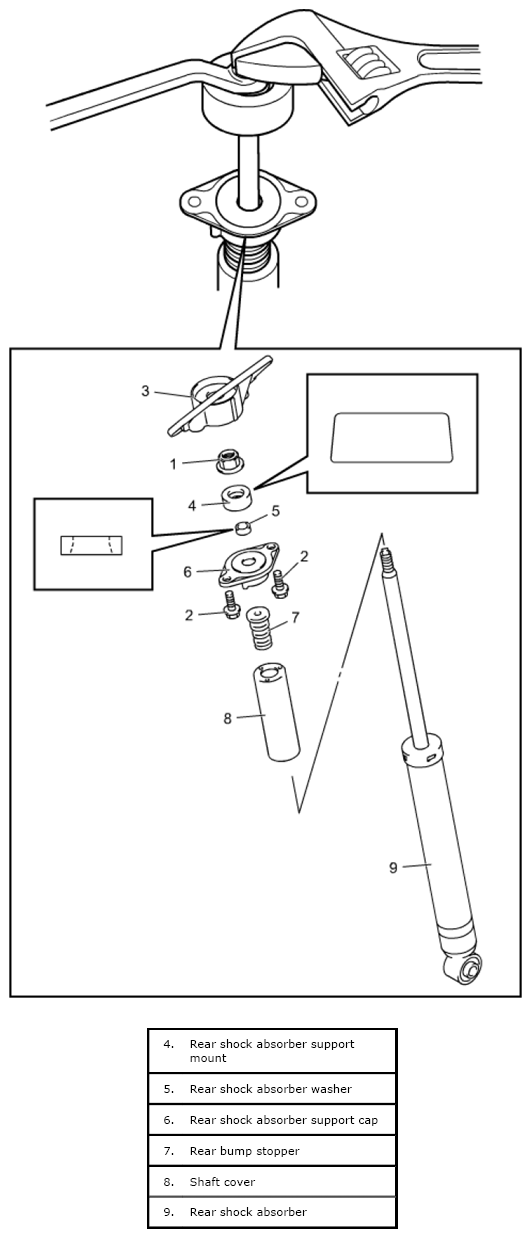

Fig 1: Removing Rear Shock Absorber Support Cap Bolt And Rear Shock Absorber Support
G06528354Courtesy of SUZUKI OF AMERICA CORP.
