Lower Arm Removal and Installation: Removal

  1. Hoist vehicle and remove rear wheels, see WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
  2. Remove shock absorber and coil spring, see SHOCK ABSORBER AND COIL SPRING REMOVAL AND INSTALLATION .
  3. Remove lower arm nut and lower arm bolt.
  4. Put matchmark (3) across adjustment washer (1) and rear suspension frame (2).
  5. Remove lower arm lock nut (4), adjustment washer and lower arm adjustment bolt (5).
  6. Remove lower arm (6).

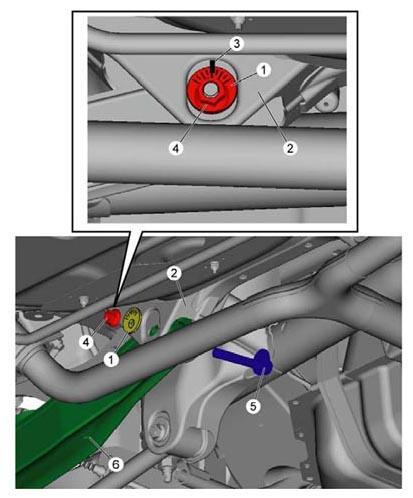

    Fig 1: Identifying Matchmark, Adjustment Washer, Lower Arm Lock Nut And Rear Suspension Frame
    G06528368Courtesy of SUZUKI OF AMERICA CORP.
