Control Rod/Bushing Disassembly and Reassembly: Disassembly

  1. Push out control rod bushing (2) by using special tool and hydraulic press (1).

    Special Tool

    1. 09913-70210

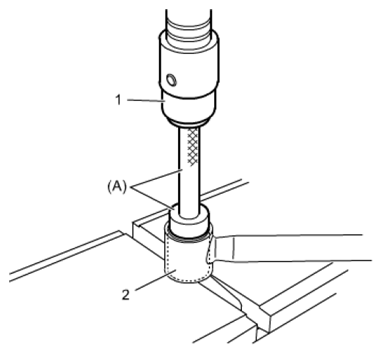

    Fig 1: Pushing Out Control Rod Bushing By Hydraulic Press
    G06528358Courtesy of SUZUKI OF AMERICA CORP.
