Front Suspension Frame Removal and Installation: Removal

Remove engine undercover.
Remove front bumper lower cover, see FRONT BUMPER REMOVAL AND INSTALLATION .
Remove exhaust pipe No. 2, see EXHAUST PIPE AND MUFFLER REMOVAL AND INSTALLATION .
Remove propeller shaft (4WD model), see PROPELLER SHAFT ASSEMBLY REMOVAL AND INSTALLATION .
Remove front stabilizer bar joints, see FRONT STABILIZER BAR/FRONT STABILIZER BAR JOINT REMOVAL AND INSTALLATION .
Remove suspension arms, see SUSPENSION ARM REMOVAL AND INSTALLATION .
Separate steering lower shaft and steering gear box, see STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
Remove P/S motor connector, resolver/torque sensor connector and grounding from P/S controller, see STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
Support engine transmission transfer assembly (4WD model) using hoist.

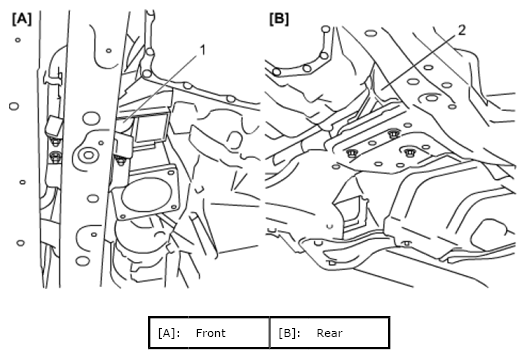

Detach front engine mounting (1) and engine rear mounting (2) from front suspension frame.

Fig 1: Identifying Front Engine Mounting And Engine Rear Mounting
Courtesy of SUZUKI OF AMERICA CORP.

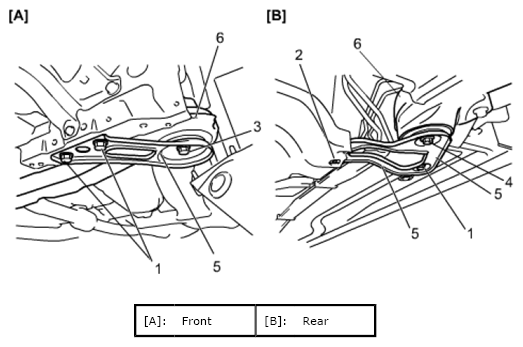

Remove front suspension frame mounting bracket bolts (1) and front suspension frame mounting bracket nut (2) and loosen front suspension frame No. 1 bolt (3) and front suspension frame No. 2 bolt (4) evenly to remove front suspension frame mounting bracket (5) and front suspension frame (6).

Fig 2: Identifying Front Suspension Frame Mounting Bracket Bolts, Nut, Front Suspension Frame No. 2 Bolt And Front Suspension Frame Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove front stabilizer bar and steering gear case from front suspension frame.
- Stabilizer bar, FRONT STABILIZER BAR/FRONT STABILIZER BAR JOINT REMOVAL AND INSTALLATION
- Steering gear case, see STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
