Front Stabilizer Bar Components

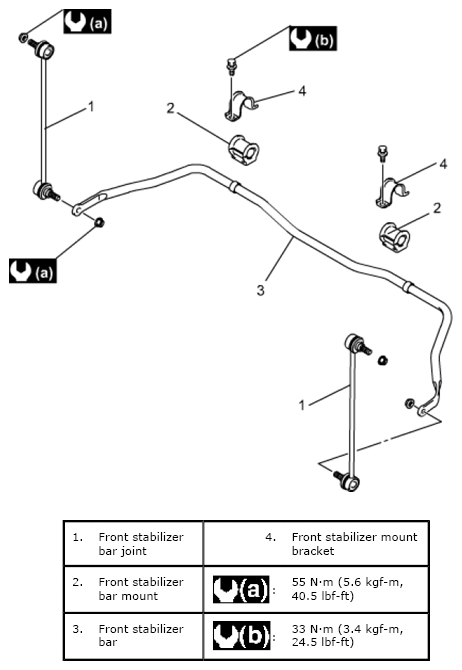

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
G06529917Courtesy of SUZUKI OF AMERICA CORP.
