Tie-Rod End Boot On-Vehicle Inspection

Check boot for crack and damage.

Replace tie-rod end boot with new one if defective.

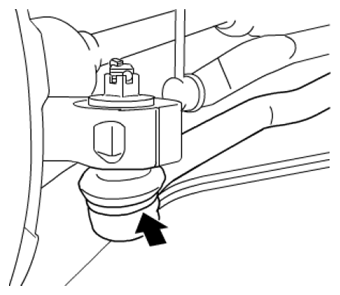

Fig 1: Locating Tie-Rod End Boot
G06528943Courtesy of SUZUKI OF AMERICA CORP.
