Steering Rack Plunger Removal and Installation: Removal

  1. Remove steering gear case, see STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
  2. Loosen steering rack damper screw lock nut (1) and remove steering rack damper screw (2).
  3. Remove steering rack plunger spring (3), spring washer (4) and steering rack plunger (5).

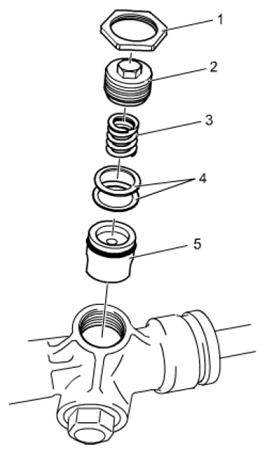

    Fig 1: Identifying Steering Rack Damper Screw, Steering Rack Plunger Spring, Spring Washer And Steering Rack Plunger
    G06528962Courtesy of SUZUKI OF AMERICA CORP.
