Rack Boot Removal and Installation: Removal

  1. Remove front suspension frame, see FRONT SUSPENSION FRAME REMOVAL AND INSTALLATION .
  2. Remove steering gear case, see STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
  3. Remove tie-rod end, see TIE-ROD END REMOVAL AND INSTALLATION .

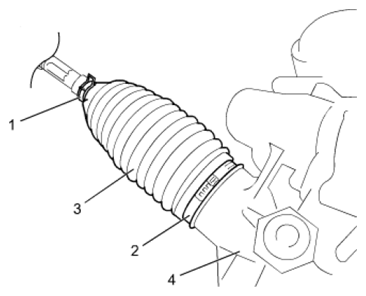

  4. Remove boot clamp (1) and boot band (2) and remove rack boot (3) from steering gear case (4).
    Fig 1: Identifying Boot Clamp, Boot Band, Rack Boot And Steering Gear Case
    G06528959Courtesy of SUZUKI OF AMERICA CORP.
