Second Spacing Washer Missing On CVT Secondary Rpm Sensor (SI-0021)

Publication date: 2015-01-28
Reference number: SI-0021

SECOND SPACING WASHER MISSING ON CVT SECONDARY RPM SENSOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI-0021, Date of Issue: January 28, 2015

SUZUKI:

All Kizashi and SX4 models with a CVT Transmission

CONDITION

The Malfunction Indicator Lamp turns ON and DTC P0721 (Output Speed Sensor Range) is stored.

CAUSE

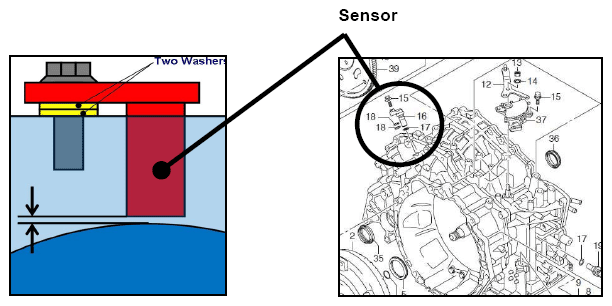

The CVT secondary RPM sensor is originally assembled with two spacing washers. When both spacing washers are not re-installed during service, the secondary RPM sensor will be damaged from contact with the internal drive pinion, resulting in a poor signal to the CVT controller.

CORRECTION

When servicing the secondary RPM sensor, re-install two washers (P/N 26143-54LS0) between the CVT secondary RPM sensor and the CVT case.
