Clutch Operating Cylinder Assembly Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Clean around reservoir cap of brake master cylinder and extract fluid with syringe or the like.
Dismount transaxle assembly, see MANUAL TRANSAXLE UNIT DISMOUNTING AND REMOUNTING .
Pull clamp (1), and then remove clutch pipe joint (2).

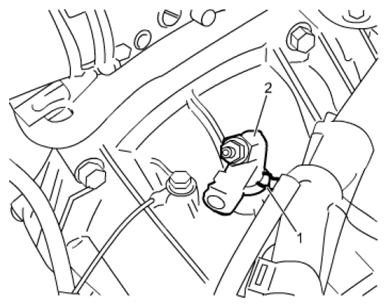

Fig 1: Identifying Clamp And Clutch Pipe Joint
Courtesy of SUZUKI OF AMERICA CORP.
Loosen clutch fluid pipe flare nut (1) of clutch operating cylinder assembly (2).
Remove clutch pipe joint sleeve (3) from transaxle and then remove clutch fluid pipe (4).
Remove clutch operating cylinder assembly from transaxle.

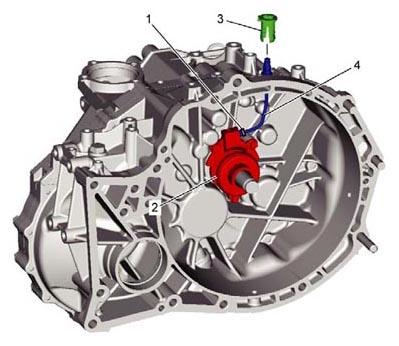

Fig 2: Identifying Clutch Fluid Pipe Flare Nut, Clutch Pipe Joint Sleeve And Clutch Operating Cylinder Assembly
Courtesy of SUZUKI OF AMERICA CORP.
