CPP Switch Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove instrument panel undercover.
  2. Disconnect connector of CPP switch (1) with ignition mode of keyless push start system in "OFF".
  3. Remove CPP switch (1) from pedal bracket.

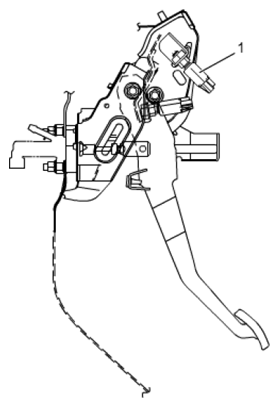

    Fig 1: Identifying CPP Switch
    G06528897Courtesy of SUZUKI OF AMERICA CORP.
