CPP Switch Inspection and Adjustment: Inspection
WARNING: This page is about a different variant/trim than selected.

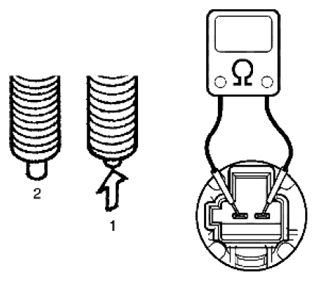

Check for resistance between terminals under each condition below. If check result is not satisfactory, replace CPP switch.
CPP switch resistance
When switch shaft is pushed (1): Continuity
When switch shaft is free (2): No continuity
Courtesy of SUZUKI OF AMERICA CORP.
