CPP Switch Inspection and Adjustment: Adjustment
WARNING: This page is about a different variant/trim than selected.

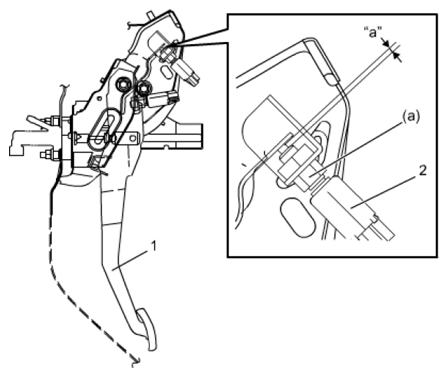

With clutch pedal (1) depressed, adjust switch (2) position so that clearance "a" between end of thread and clutch pedal arm is within specification and then tighten lock nut to specified torque.
Clearance between end of thread and clutch pedal arm
"a": 1.6 - 2.0 mm (0.063 - 0.078 in.)
Tightening torque
CPP switch lock nut (a): 7.5 N.m (0.76 kg-m, 5.5 lbf-ft)
