Right Case Disassembly and Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

Install new input shaft oil seal facing its spring side upward until it becomes flat with case surface, if removed. Use special tool and hammer for installation and apply grease to oil seal lip.
: Grease 99000-25011 (SUZUKI Super Grease A)

Special Tool
1. 09913-76010

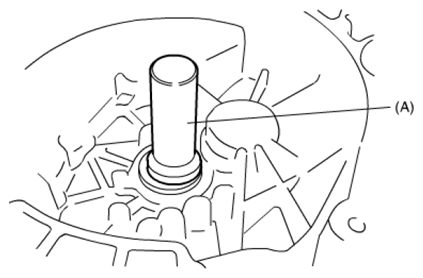

Fig 1: Identifying Input Shaft Oil Seal And Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Install countershaft right bearing outer race and new countershaft oil channel using special tool, if removed.
Special Tool
1. 09913-85210

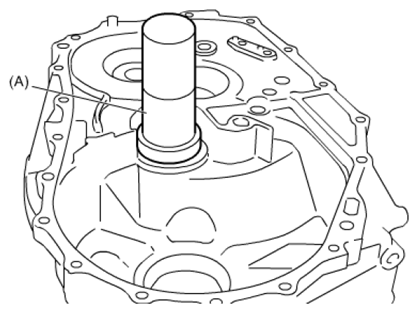

Fig 2: Installing Countershaft Oil Channel Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Install differential side bearing outer race using special tools and hammer, if removed.
Special Tool
1. 09924-74510
2. 09925-14520

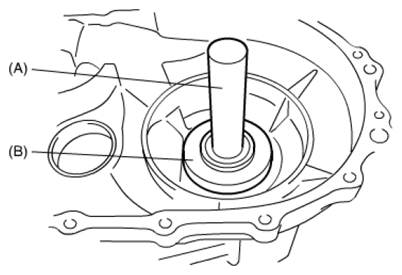

Fig 3: Installing Differential Side Bearing Outer Race Using Special Tools
Courtesy of SUZUKI OF AMERICA CORP.
Install new differential side oil seal to right case, if removed, see DIFFERENTIAL SIDE OIL SEAL REPLACEMENT .
