Right Case Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove differential side oil seal from right case, if necessary, see DIFFERENTIAL SIDE OIL SEAL REPLACEMENT .

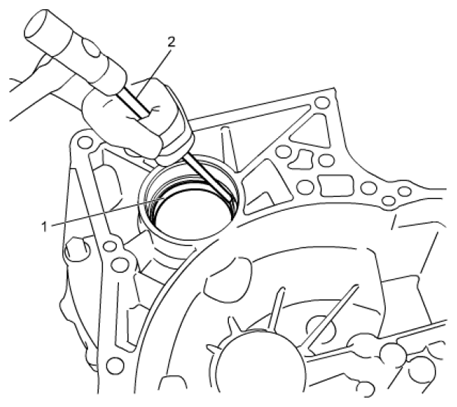

Remove differential side bearing outer race (1) using brass bar (2), if necessary.

Fig 1: Removing Differential Side Bearing Outer Race Using Brass Bar
Courtesy of SUZUKI OF AMERICA CORP.
Remove input shaft oil seal using special tool, if necessary.
Special Tool
1. 09913-75830

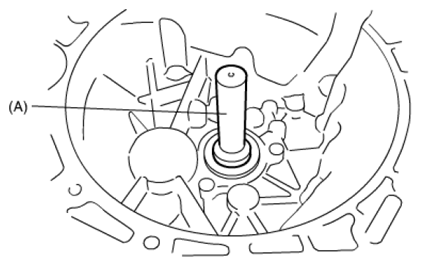

Fig 2: Removing Input Shaft Oil Seal Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.

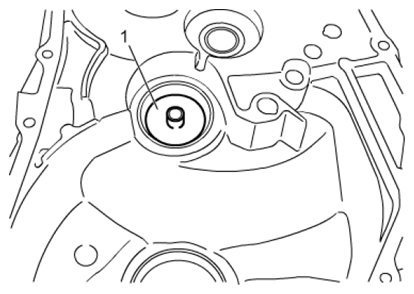

Break oil channel (1) with flat-end screwdriver or the like and remove it.

Fig 3: Identifying Break Oil Channel
Courtesy of SUZUKI OF AMERICA CORP.
Remove countershaft right bearing outer race using special tools, if necessary.
Special Tool
1. 09942-15511
2. 09944-96011

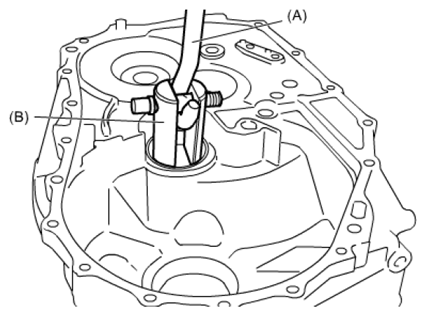

Fig 4: Removing Countershaft Right Bearing Outer Race Using Special Tools
Courtesy of SUZUKI OF AMERICA CORP.
