Manual Transaxle Oil Level Check
WARNING: This page is about a different variant/trim than selected.
- Hoist vehicle horizontally.
- Remove left side engine undercover.

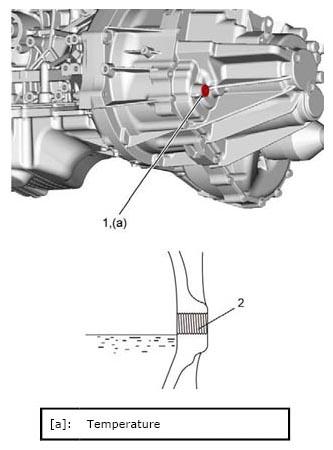

- Remove transaxle oil level/filler plug (1) and gasket, and confirm oil flow from oil level/filler plug hole (2). If oil does not flow, pour specified oil until a little oil flows from oil level/filler plug hole.
- Install transaxle oil level/filler plug with new gasket, and then tighten it to specified torque.
Tightening torque
Transaxle oil level/filler plug (a): 27 N.m (2.8 kg-m, 20.0 lbf-ft)
