Manual Transaxle Assembly Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove back up light switch, see back Up Light Switch Removal And Installation .
Remove transaxle case bolts.
Remove transaxle left side case (1) from right case using special tool.
Special Tool
1. 09912-34510

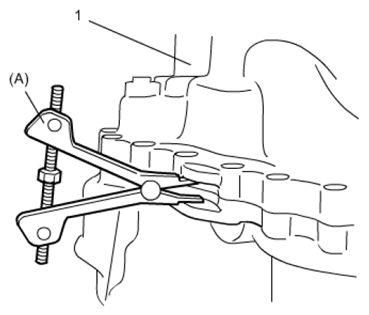

Fig 1: Removing Transaxle Left Side Case From Right Case Using Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
Remove reverse gear shift lever bolts (1) and reverse gear shift lever (2).

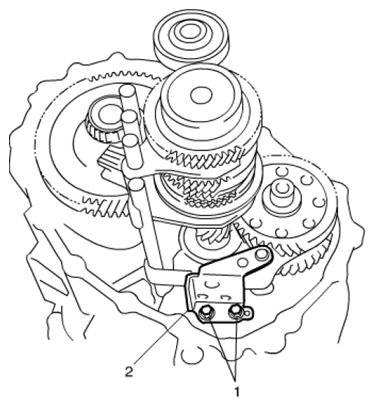

Fig 2: Identifying Reverse Gear Shift Lever Bolts And Reverse Gear Shift Lever
Courtesy of SUZUKI OF AMERICA CORP.
Tapping input shaft end with plastic hammer, push it out as assembly from case a little, and then remove input shaft assembly (1), countershaft assembly (2), high speed gear shift shaft (3), low speed gear shift shaft (4), 5th and 6th gear shift shaft (5), reverse gear shift (6) and reverse gears (7).

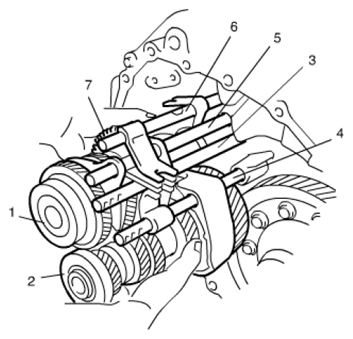

Fig 3: Identifying Input Shaft Assembly, Countershaft Assembly, High Speed Gear Shift Shaft And Low Speed Gear Shift Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove differential assembly from right case.
