Left Case Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove oil gutter (1), if necessary.

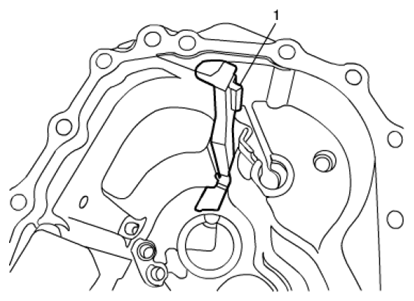

Fig 1: Identifying Oil Gutter
Courtesy of SUZUKI OF AMERICA CORP.
Remove oil seal using flat-end screwdriver or the like.
Remove differential side bearing outer race (1) and shim using special tools.
Special Tool
1. 09942-15511
2. 09944-96011

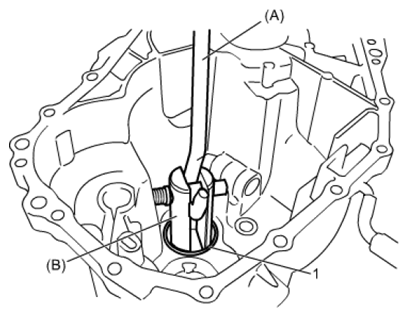

Fig 2: Removing Differential Side Bearing Outer Race And Shim Using Special Tools
Courtesy of SUZUKI OF AMERICA CORP.
Remove countershaft left bearing outer race (1) and shim using special tools.
Special Tool
1. 09942-15511
2. 09944-96011

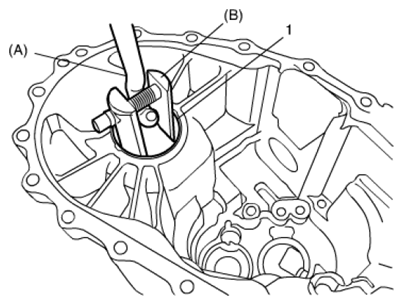

Fig 3: Removing Countershaft Left Bearing Outer Race And Shim Using Special Tools
Courtesy of SUZUKI OF AMERICA CORP.
