Input Shaft Inspection

Reference: INPUT SHAFT DISASSEMBLY AND REASSEMBLY

• Check input shaft for damage and excessive wear, and replace if necessary.
• To ensure lubrication of input shaft (1), air-blow oil holes (2) and make sure that they are free from any obstruction.

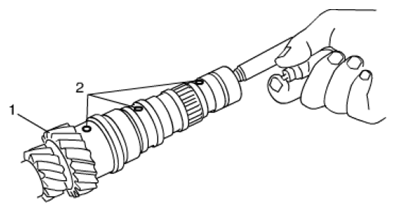

  Fig 1: Identifying Input Shaft And Oil Holes

  Courtesy of SUZUKI OF AMERICA CORP.
