Gear Shift and Select Shaft Assembly Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.

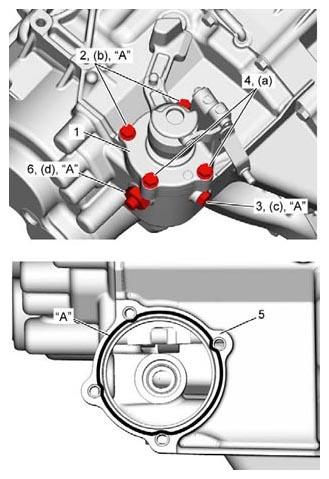

- Clean mating surface of guide case (1) and left case (5), apply sealant to left case as shown in figure.
Diameter of applied sealant is 1.5 mm (0.059 in.).
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
- Mate guide case with left case.
- Apply sealant to thread of guide case No. 2 bolts (2), and then tighten guide case No. 1 bolts (4) and guide case No. 2 bolts to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Guide case No. 1 bolt (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
Guide case No. 2 bolt (b): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
- Apply sealant to thread of gear shift interlock bolt (3) and gear shift locating spring (6), and then tighten them to specified torque.
"A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)
Tightening torque
Gear shift inter lock bolt (c): 23 N.m (2.3 kg-m, 17.0 lbf-ft)
Gear shift locating spring (d): 28 N.m (2.9 kg-m, 21.0 lbf-ft)
- Connect gear shift and gear select control cables to transaxle.
- Install battery bracket, battery tray with ECM and battery, see BATTERY REMOVAL AND INSTALLATION .
- Check input shaft for rotation in each gear position.
