Gear Shift Control Lever and Cable Components

WARNING: This page is about a different variant/trim than selected.

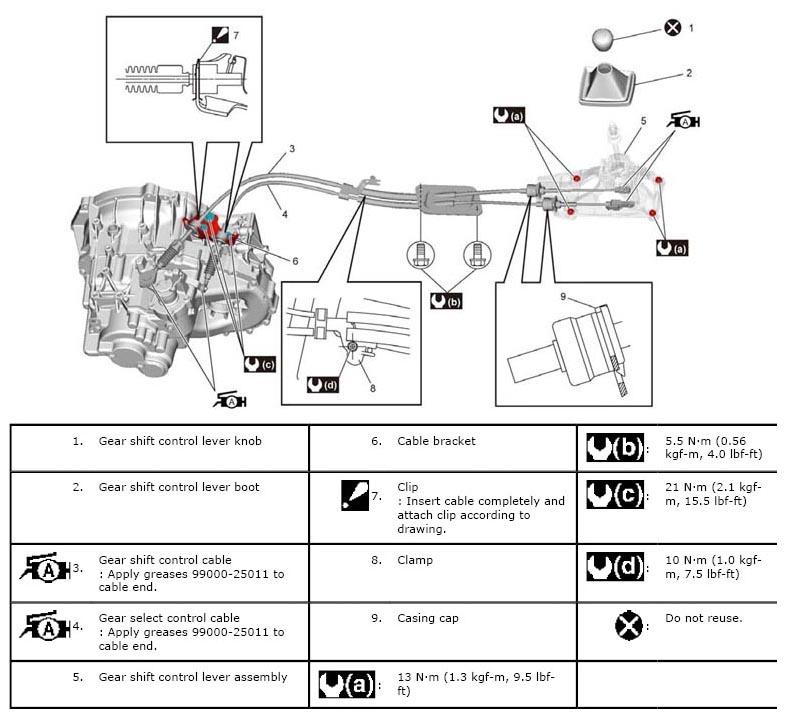

Fig 1: Gear Shift Control Lever And Cable Replacement Components With Torque Specifications
G06528765Courtesy of SUZUKI OF AMERICA CORP.
