Differential Components

WARNING: This page is about a different variant/trim than selected.

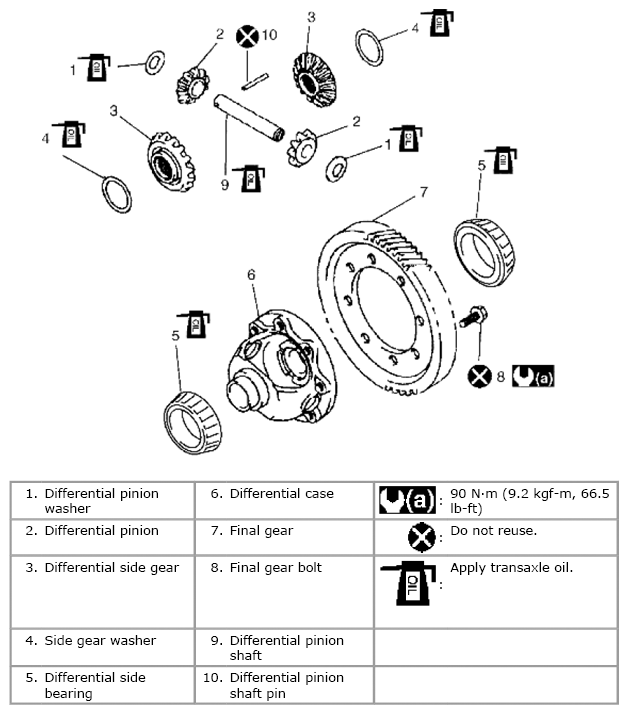

Fig 1: Differential Replacement Components Torque Specifications
G06528856Courtesy of SUZUKI OF AMERICA CORP.
