Countershaft Inspection

Reference: COUNTERSHAFT DISASSEMBLY AND REASSEMBLY

• Check countershaft for damage and excessive wear, and replace it if necessary.
• To ensure lubrication of countershaft (1), air-blow oil holes (2) and make sure that they are free from any obstruction.

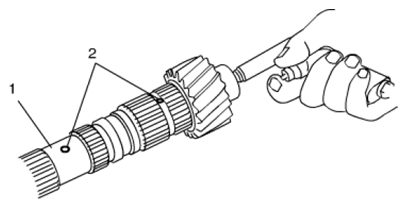

  Fig 1: Identifying Countershaft And Oil Holes

  Courtesy of SUZUKI OF AMERICA CORP.
