Countershaft Components

WARNING: This page is about a different variant/trim than selected.

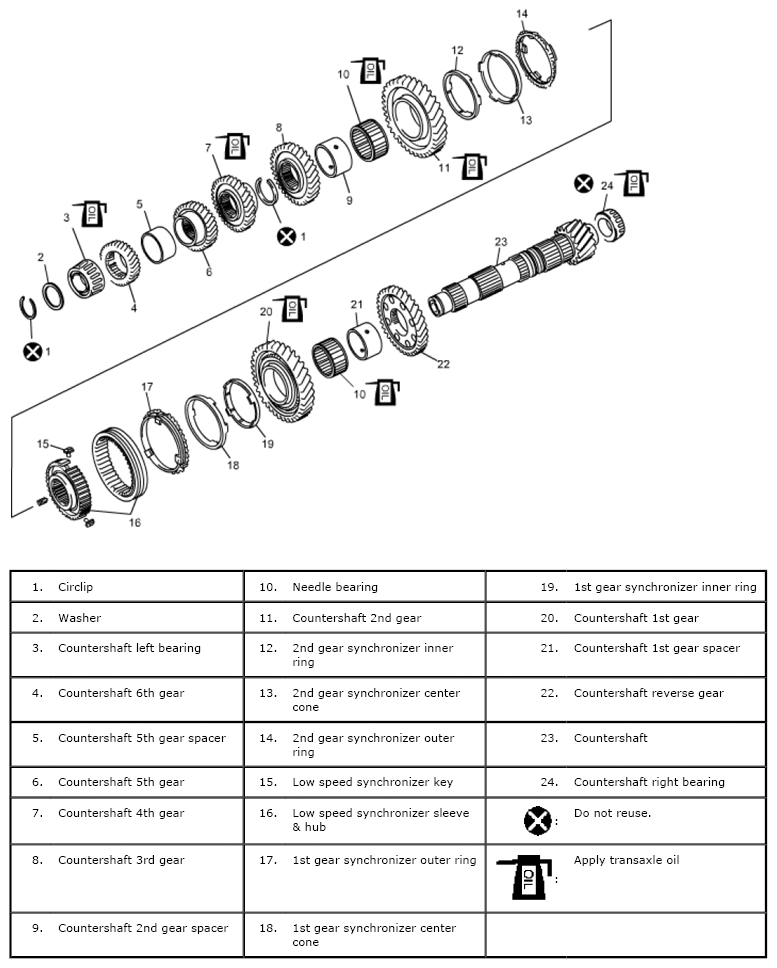

Fig 1: Identifying Countershaft Components
G06528827Courtesy of SUZUKI OF AMERICA CORP.
