Back Up Light Switch Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove battery, battery tray with ECM and battery bracket, see BATTERY REMOVAL AND INSTALLATION .
  2. Disconnect back up light switch connector (1).
  3. Remove back up light switch.

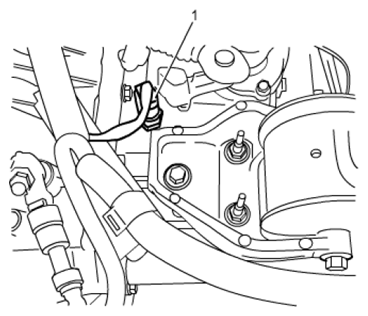

    Fig 1: Identifying Back Up Light Switch Connector
    G06528771Courtesy of SUZUKI OF AMERICA CORP.
