Trunk Lid Opener Switch On-Vehicle Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid inner handle and trunk lid trim, see TRIM REMOVAL AND INSTALLATION .
Disconnect trunk lid opener switch connector (1).
Check continuity between terminals at each switch position.
If check result is not as specified, replace switch.

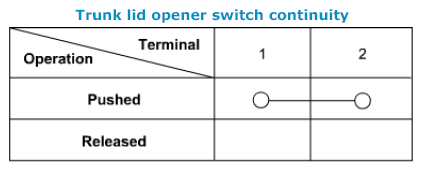

Fig 1: Trunk Lid Opener Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

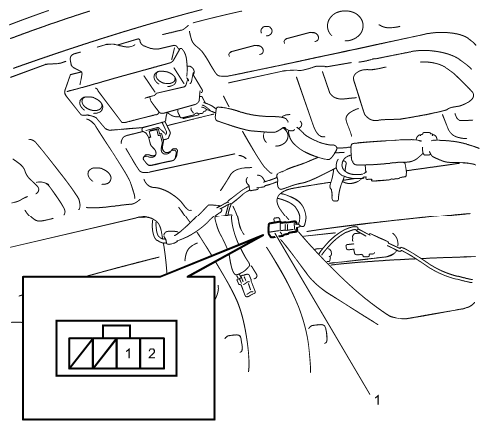

Fig 2: Checking Continuity Between Trunk Lid Opener Switch Terminals
Courtesy of SUZUKI OF AMERICA CORP.
