Trunk Lid Latch Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trunk lid inner handle and trunk lid trim, see TRIM REMOVAL AND INSTALLATION .
  2. Disconnect trunk lid latch connector (1) from trunk lid latch assembly (2).
  3. Remove trunk lid latch bolts (3) and remove trunk lid latch assembly (2).

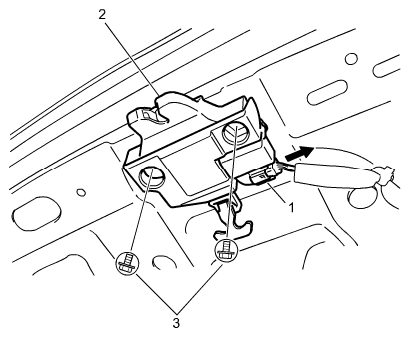

    Fig 1: Disconnecting Trunk Lid Latch Connector From Trunk Lid Latch Assembly
    G06529197Courtesy of SUZUKI OF AMERICA CORP.
