Trunk Lid Switch

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk lid inner handle and trunk lid trim, see TRIM REMOVAL AND INSTALLATION .
Disconnect trunk lid latch connector from trunk lid latch assembly.
Check continuity between terminals of trunk lid latch assembly connector shown below when lock is held down with flat-end screwdriver (1).
Replace trunk lid latch assembly if defective.

Fig 1: Trunk Lid Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

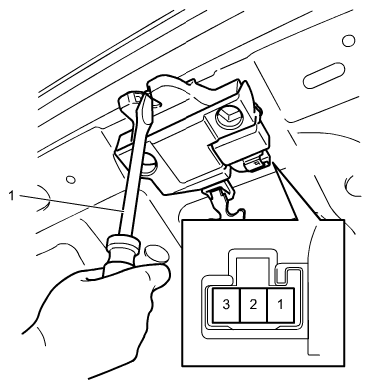

Fig 2: Checking Continuity Between Terminals Of Trunk Lid Latch Assembly Connector
Courtesy of SUZUKI OF AMERICA CORP.
