Driver Side

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove power window master switch, see FRONT DOOR COMPONENTS .
  2. Check continuity between terminals at each switch position.

    If check results are not as specified, replace switch.

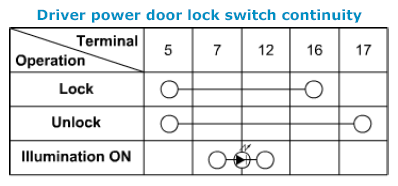

    Fig 1: Driver Power Door Lock Switch Continuity Chart
    G06529188Courtesy of SUZUKI OF AMERICA CORP.

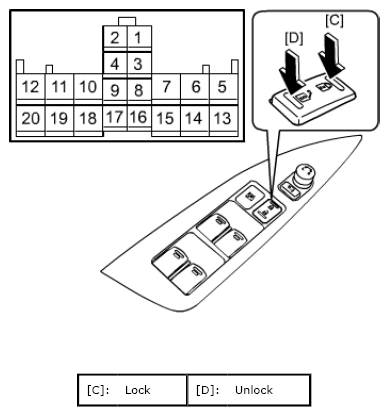

    Fig 2: Checking Continuity Between Power Door Lock Switch Terminals
    G06529189Courtesy of SUZUKI OF AMERICA CORP.
